How to install a Graphics Card (GPU)

Hello Friends,

                              Today i'll tell you how to install a Graphics Card in your gaming PC setup. Installing a GPU can make a world or difference when it comes to gaming on a PC

1. How to install your new GPU

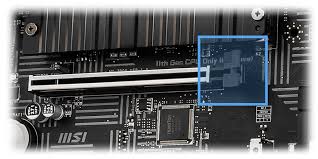

The main parts of this task involve the case and PCIe slot on the motherboard. Most GPUs sold today are connected to the PC via this PCIe slot. A motherboard can have more than one slot, but we'll want to use the first (x16) slot, which usually has the most bandwidth available. An x4 slot is shorter and can be used for other expansion cards (Wi-Fi cards, for example), and secondary x16 slots are usually reserved for additional GPUs or expansion cards.

2. Installing the GPU



1. Power down your PC

2. Switch off the power button on the back side of PSU

3. Extract the side panel.

4. Remove screws from the rear bracket

5. Unlock the PCIe slot clips.

6.Hower the new GPU over the PCI-e slots.

7. Push down the GPU to slide the connector into the slots.

8. Insure that clip are back in place.

9. Screw the rear bracket .

10. Connect the power cables to GPU

11. Reattach the side panel .

12. Install respective drivers AMD or NVIDIA.
